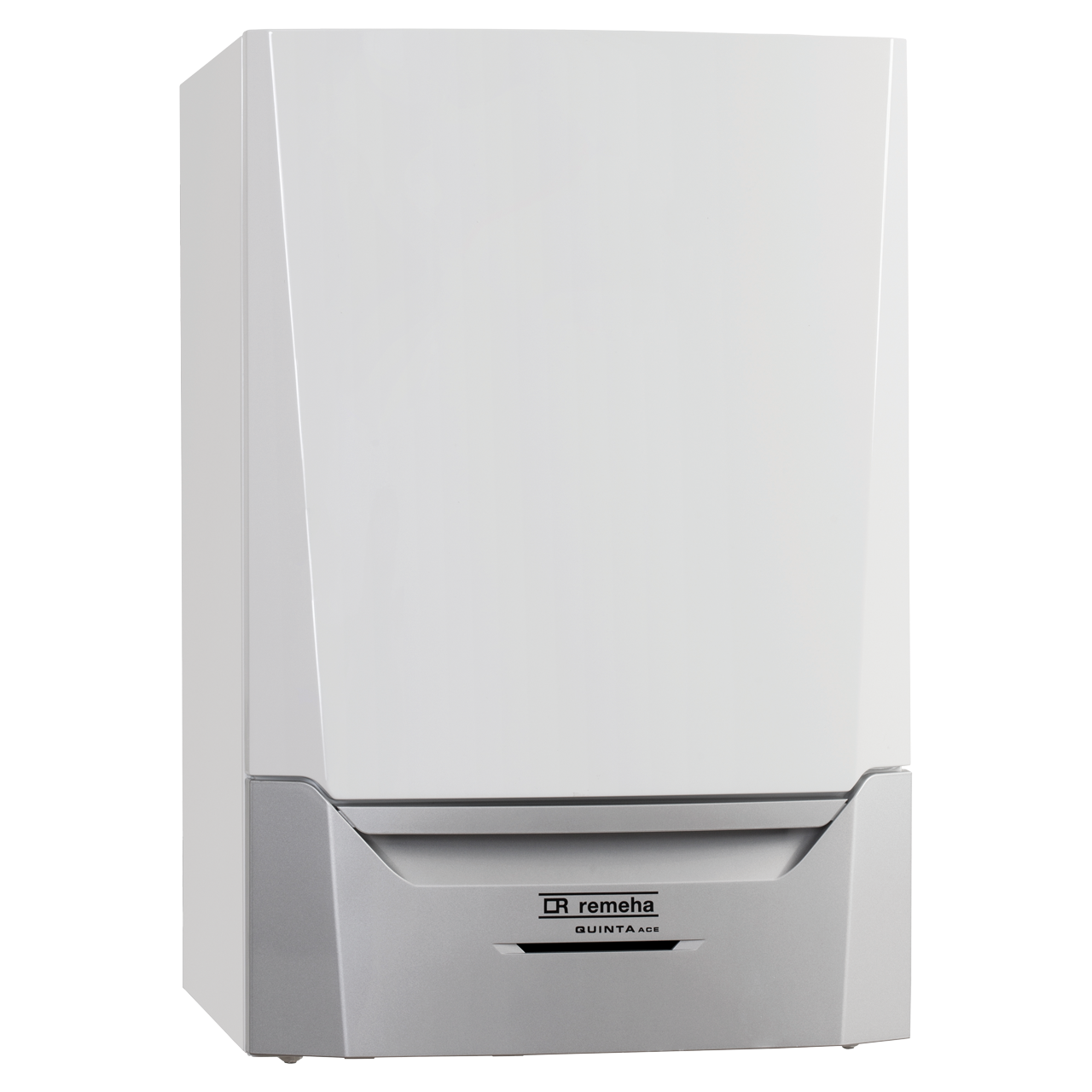

The Quinta Ace is a market-leading series of high-efficiency wall hung condensing boilers with low NOx emissions. The extremely compact design enables individual installation or as part of a multi-boiler cascade or rig system.
The Quinta Ace wall hung boilers are suitable for use on both sealed and open-vented (excluding the Quinta Ace 135 & 160) installations and are perfect for both new and retrofit installations.
Available in 30, 45, 55, 65, 90, 115, 135 and 160kW models.
- Wall Hung Boilers
- Quinta Ace 30-160
- Home
- Products
- Wall Hung Boilers
- Quinta Ace 30-160
Features and Benefits
High-efficiency
High-efficiency wall hung boiler up to 99.6% Gross Calorific Value (GCV) at 50/30 (30% part load) – greater than average energy savings
Compact size
Small dimensions and lightweight design – easy to install in smaller spaces
Low emissions
Low NOx Annual Emissions levels from 22mg/kWh (0% 02, dry) (Class 6) – low pollutant emissions meet environmental regulations
Clean, trouble-free operation
Premix down-firing gas burner and one-piece cast aluminium heat exchanger
Advanced controls
Built-in advanced boiler control and calorifier control fully modulating 18-100% (5:1), 0-10V operation, on/off (volt free enable) – built-in flexibility for easy installation
Improved comfort
Quiet operation less than 52dba
Show more
Show less
Product Literature
Installation & Service Manuals
Installation Manuals
Product Documentation
Specification Guides
Specification Guides
Product Documentation
Technical Specifications
Technical Specifications
Product Documentation
Product Fiche
Product Fiche
Product Documentation
Energy Labels
Energy Labels
Product Documentation
BIM
BIM
Quinta Ace 30 160
CAD
CAD
Product Documentation
Technical Specification
Model | 30 | 45 | 55 | 65 | 90 | 115 | 135 | 160 |
| Performance | ||||||||
| Nominal heat output central heating | 8.0–29.8 | 8.0–40.8 | 11.1–55.3 | 12.0–61.5 | 14.1–84.2 | 18.9–103.9 | 31.5–128.1 | 31.5–152.1 |
| operation @ 80/60°C kW (min–max)* | ||||||||
| Nominal heat output central heating | 9.1–30.9 | 9.1–42.4 | 12.3–58.6 | 13.5–65.0 | 15.8–89.5 | 21.2–109.7 | 34.7–136.1 | 34.7–161.6 |
| operation @ 50/30°C kW (min–max)* | ||||||||
| Nominal input (Hi) (min–max) | 8.2–30 | 8.2–41.2 | 11.3–56.5 | 12.2–62.0 | 14.6–86.0 | 9.6–107.0 | 32–131 | 32–156 |
| Efficiency | ||||||||
| SBEM seasonal efficiency GCV | 97.62% | 97.64% | 96.04% | 97.58% | 95.65% | 95.44% | 96.12% | 95.90% |
| Efficiency – full load 100% NCV | 99.4% | 99.1% | 97.8% | 99.2% | 97.9% | 97.1% | 97.8% | 97.5% |
| Efficiency – part load 30% NCV | 110.4% | 110.6% | 108.7% | 110.4% | 108.1% | 108% | 108.8% | 108.5% |
| Eco design useful efficiency @ 80/60°C | 89.6% | 89.3% | 88.1% | 89.4% | 88.2% | 87.5% | 88.1% | 87.8% |
| (100% full load) GCV | ||||||||
| Eco design useful efficiency @ 50/30°C | 99.5% | 99.6% | 97.9% | 99.5% | 97.4% | 97.3% | 98.0% | 97.8% |
| (30% part load) GCV | ||||||||
| Energy labelling seasonal space efficiency GCV | 94% | 94% | 92% | 94% | N/a | N/a | N/a | N/a |
| ErP efficiency rating | A | A | A | A | N/a | N/a | N/a | N/a |
| Annual energy consumption Gj | 91 | 125 | 173 | 188 | N/a | N/a | N/a | N/a |
| Gas | ||||||||
| Standard fuel | Natural gas | Natural gas | Natural gas | Natural gas | Natural gas | Natural gas | Natural gas | Natural gas |
| Optional fuel adjustment – see installation | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) |
| and service manual | ||||||||
| Gas consumption NG m3/h | 0.9–3.2 | 0.9–4.4 | 1.2–6.0 | 1.3–6.6 | 1.5–9.1 | 2.1–11.3 | 3.4–13.9 | 3.4–16.5 |
| Gas consumption LPG m3/h | 0.4–1.2 | 0.4–1.7 | 0.5–2.3 | 0.5–2.5 | 0.9–3.5 | 0.9–4.4 | 1.4–5.3 | 1.4–6.3 |
| Min/max gas inlet pressure NG mbar | 17–25 | 17–25 | 17–25 | 17–25 | 17–25 | 17–25 | 17–25 | 17–25 |
| Min/max gas pressure LPG mbar | 37–50 | 37–50 | 37–50 | 37–50 | 37–50 | 37–50 | 37–50 | 37–50 |
| Gas connection size BSP inches | ¾" male thread | ¾" male thread | ¾" male thread | ¾" male thread | ¾" male thread | ¾" male thread | 1" male thread | 1" male thread |
| Gas | ||||||||
| Flue diameter mm I/D | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 100 |
| Air inlet diameter mm I/D | 125 | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| Min/max flue gas mass flow rate kg/h | 14–50 | 14–69 | 19–93 | 21–104 | 28–138 | 36–178 | 57–233 | 57–277 |
| Min/max flue gas temperature °C | 30–65 | 30–67 | 30–68 | 30–68 | 30–68 | 30–72 | 32–63 | 32–66 |
| Max counter pressure Pa | 70 | 150 | 120 | 100 | 160 | 220 | 200 | 200 |
| Hydraulics | ||||||||
| Water content litres | 4.3 | 4.3 | 6.4 | 6.4 | 9.4 | 9.4 | 17.0 | 17.0 |
| Resistance @ 15°C ∆T mbar | 124 | 203 | 231 | 290 | 272 | 444 | 224 | 302 |
| Hydraulic resistance @ 20°C ∆T mbar | 70 | 114 | 130 | 163 | 153 | 250 | 126 | 170 |
| Nominal flow rate @ 15°C ∆T l/s | 0.48 | 0.65 | 0.88 | 0.97 | 1.34 | 1.66 | 2.04 | 2.43 |
| Nominal flow rate @ 20°C ∆T l/s | 0.36 | 0.49 | 0.66 | 0.74 | 1.01 | 1.24 | 1.53 | 1.82 |
| Condensate connection | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm |
| Connection size BSP | 1¼" male thread | 1¼" male thread | 1¼" male thread | 1¼" male thread | 1¼" male thread | 1¼" male thread | 1¼" male thread | 1¼" male thread |
| Standard operating temperature** °C | 20–90 | 20–90 | 20–90 | 20–90 | 20–90 | 20–90 | 20–90 | 20–90 |
| Max operating temperature °C | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| High limit temperature °C | 110 | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Max water operating pressure bar | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Min water operating pressure bar | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Min operating pressure bar (OV)** | 0.3 o/v | 0.3 o/v | 0.3 o/v | 0.3 o/v | 0.3 o/v | 0.5 o/v | N/a | N/a |
| General | ||||||||
| Total weight (including packaging) kg | 60.5 | 60.5 | 66.5 | 66.5 | 76.5 | 76.5 | 147 | 147 |
| Min mounting weight without front panel kg | 50 | 50 | 56 | 56 | 65.2 | 65.2 | 123 | 123 |
| Dimension mm (WxHxD) | 500x750 x500 | 500x750 x500 | 500x750 x500 | 500x750 x500 | 500x750 x500 | 500x750 x500 | 600x1045 x602 | 600x1045 x602 |
| NOx Annual Emissions BREEAM EN15502 - | 24 | 24 | 23 | 23 | 23 | 23 | 24 | 22 |
| NG mg/kWh (dry, 0% O2) Class 6*** | ||||||||
| BREEAM Credits *** | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Noise levels dB(A) at 1 metre | 38.3 | 45.1 | 46.7 | 46.7 | 51.6 | 51.1 | 59.5 | 59.5 |
| Eco design sound power levels LWA indoors dB | 46 | 53 | 55 | 55 | 60 | 59 | 68 | 68 |
| Standby heat loss kW | 0.101 | 0.101 | 0.110 | 0.110 | 0.123 | 0.123 | 0.191 | 0.191 |
| Electrical | ||||||||
| Nominal power supply | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz | 230vx1ph x50hz |
| Power consumption w | 19–40 | 20–75 | 26–81 | 26–89 | 26–114 | 32–182 | 47–199 | 47–275 |
| Modulating input v dc | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Controls voltage | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) |
| Electrical protection index VAC | X4D | X4D | X4D | X4D | X4D | X4D | X1B | X1B |
*Gas consumption based on lower heating value under standard heating conditions: T=288.15K, p=1013.25mbar. Gag 30.33, G25 29.25, G31 88.00 MJ/m3
**Open vented option maximum operating temperature 75°C
